THE STEP UP
WHY BUILDERS MOVE UP FROM ENTRY-LEVEL MACHINES
“The reason we ordered the 5.0 ROBOTICS system was time.
With our previous setup, tool changes were constant, sometimes every 20–30 seconds.”
But, the extra power and strength we have in the new machine has just tightened everything up.
Clean cuts, even more accuracy and production times slashed.
The support we've had in setting up the machine and afterwards has been absolutely second to none!
I cannot recommend this machine enough no matter what industry you're in.”
- Tim Stark, Head of Design and Production,
Manson Guitar Works
How it fits your workshop
Designed to integrate without rethinking your
Space or workflow.
WHAT STAYS IN YOUR HANDS
-
COMPACT FOOTPRINT FOR SMALL
AND MID-SIZED WORKSHOPS
-
NO DEDICATED
FACTORY ROOM REQUIRED
-
STANDARD POWER AND
DUST EXTRACTION
-
QUIET ENOUGH FOR
SHARED SPACES
-
SETUP MEASURED IN DAYS,
NOT MONTHS
If you already build instruments,
you already have what this needs.
FROM DAY 1
THIS IS WHAT CHANGES
From raw material to repeatable geometry
without REMOVING HUMAN control.
Geometry becomes consistent before craftsmanship begins
Necks, bodies, pockets, and cavities start identical,
every time.
Manual work moves downstream,
not upstream
Luthiers focus on voicing, finishing, and assembly
not rough shaping.
Output increases
without hiring or retraining
The machine absorbs repetition
while your process stays familiar.
Once geometry is controlled, the question becomes
scale, flexibility, and longevity.
BUILT AS A PLATFORM
NOT A SINGLE-PURPOSE MACHINE
A modular architecture that scales
with your production, not against it.
High rigidity
steel frame
Closed loop
servo motors
2.2kw Double ceramic bearings spindle
Industrial grade
standard components
Smartbox - IIoT
sensoring platform
Vacuum table
system
Floating dust shoe
with fogbuster
4th
rotary axis
CHOOSE YOUR BASE
The foundation everything else builds on.
EXECUTIVE SERIES 8
MACHINE DIMENSIONS
650mm (X) × 1220 mm (Y) × 180 mm (Z)
STARTING AT
€39,895.00 | €500/mo*
*Monthly financing is available for Estonian registered companies and is subject to bank credit approval
FLOATING DUST SHOE
Clean machining. Clear visibility. Consistent results.
EACH MACHINE IS EQUIPPED WITH A
FLOATING DUST SHOE
that follows the surface of the material during machining.
This ensures:
-
Continuous debris removal while cutting
-
Clear visibility of the toolpath
-
Reduced material buildup on the workpiece
-
Cleaner finishes and improved consistency
The floating design allows the shoe to adapt to surface variations without affecting cutting accuracy.
Dust extraction hardware itself is supplied by the user, allowing each workshop to choose a system that fits their material, volume, and local requirements.
OPTIONAL MIST SUPPORT
The dust shoe also supports the use of mist cooling, a controlled mixture of distilled water and oil.
Mist provides:
-
Tool lubrication
-
Improved cooling during cutting
-
Extended tool life
-
BETTER SURFACE QUALITY ON DEMANDING MATERIALS
This is particularly useful for plastics, composites, and aluminum applications where heat control is critical.
TOOL CHANGe
EXPLAINED
THE DIFFERENCE BETWEEN MTC AND QTC
MANUAL TOOL CHANGE (MTC)
Manual tool changing is the traditional approach most machinists start with.
The tool is clamped directly into the spindle, and each tool change requires:
-
Loosening and tightening the collet
-
Re-probing the tool length
-
Verifying offsets before continuing
Strengths:
-
Simple and easy to learn
-
Low initial cost
-
Encourages careful toolpath planning
Limitations:
-
Every tool change requires re-probing
-
Increased setup time for multi-tool jobs
-
Greater risk of inconsistency across operations
Quick Tool Change
bridges the gap between
fully manual and fully automated machining.
QUICK TOOL CHANGE (QTC)
Instead of changing tools directly in the spindle, tools are mounted in dedicated tool holders.
Each tool’s length is measured and stored once before machining begins.
During operation:
-
The machine moves to a predefined tool change position
-
The operator swaps tool holders quickly and repeatably
-
No re-probing is required for each tool change
Key advantages:
-
Dramatically reduced setup time compared to manual tool change
-
Consistent, repeatable tool offsets
-
Faster multi-tool workflows without automation complexity
-
Maintains full hands-on control
OUR EVERY MODEL
STARTS WITH
QUICK TOOL CHANGE
-
ITS THE FOUNDATION OF OUR PLATFORM.
ENABLING EFFICIENT MULTI-TOOL WORKFLOWS TODAY,
WHILE CREATING A SEAMLESS UPGRADE PATH
TO FULL AUTOMATION TOMORROW.
-
WHEN PRODUCTION DEMANDS INCREASE,
THE SAME MACHINE CAN BE UPGRADED TO
AUTOMATIC TOOL CHANGE.
WITHOUT REPLACING THE BASE PLATFORM.
OPTIONAL UPGRADE
Just a natural progression from assisted efficiency to full automation.
AUTOMATIC TOOL CHANGE (ATC)
For users who require:
-
Higher production volumes
-
Longer unattended runs
-
Fully automated workflows
Automatic Tool Change can be added as the next step.
no base replacement required.
ATC builds directly on the same platform
QTC removes interruption. ATC removes presence.
ADDITIONAL UPGRADEs
While the core platform is optimized for precision CNC machining,
additional upgrades are available for users with highly specific production needs.
SAFETY ENCLOSURE
A fully enclosed workspace designed to enhance operator safety, reduce noise levels, and contain chips, dust, and debris during machining operations.
Well suited for shared workshops, educational environments, and production spaces with stricter safety or compliance requirements.
6-AXIS ROBOTIC HAND
An advanced add-on for highly specialized workflows requiring automated part handling, repositioning, or complex multi-step operations.
Best suited for users with specific automation needs beyond standard CNC machining and traditional toolpath operations.
These upgrades are optional and intended for niche production cases.
Below, you can see both the 6-axis robotic hand and safety enclosure operating together on an Executive Series 8 system.

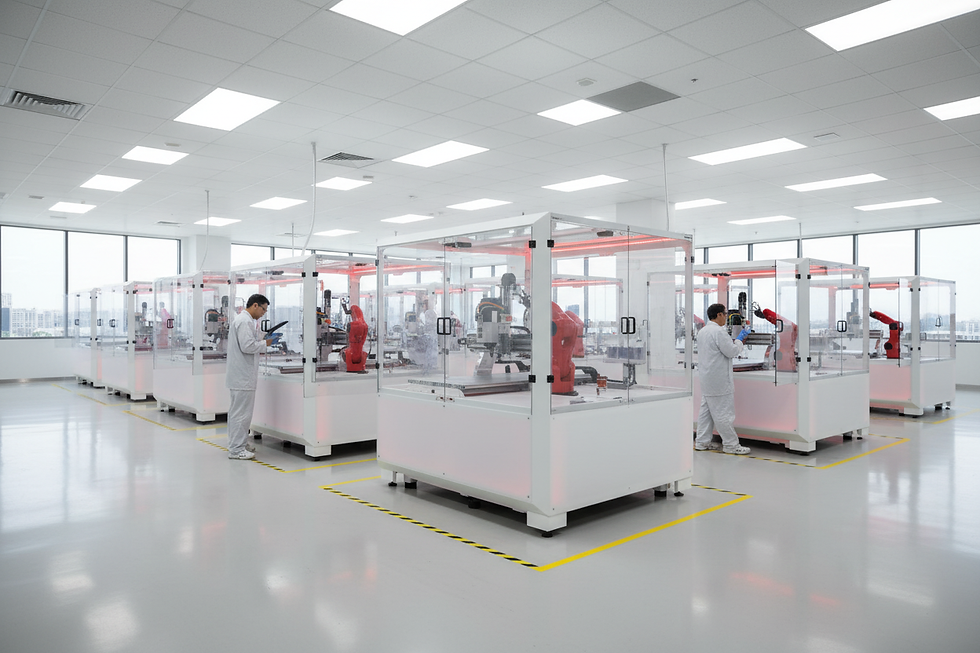

INTEGRATED
AUTOMATION CELL
This setup demonstrates the combination of a safety enclosure and a 6-axis robotic hand working alongside the CNC platform.
The enclosure provides a controlled, safe operating environment, while the robotic hand enables automated part handling and multi-step workflows.
This configuration is intended for highly specialized use cases where extended automation or unattended operation is required.
Why instrument makers
chose this system
WHAT OUR CLIENTS SAY
“The reason we ordered the 5.0 ROBOTICS system was time.
With our previous setup, tool changes were constant, sometimes every 20–30 seconds.”
“Now we load a body, hit go, and continue working elsewhere.
Production times dropped immediately, and the workflow is far smoother.”
“The machine is incredibly solid. Clean cuts, higher accuracy, and the confidence to push it harder when needed.”
- Tim Stark, Head of Design and Production, Manson Guitar Works
“This completely changed how I think about guitar production.
What impressed me most wasn’t speed, it was control.
The precision and repeatability mean I get the same result every time, without second-guessing the process.”
“CNC isn’t the enemy. Uncontrolled process is.
This system gives me consistency without taking craftsmanship away.”
- James Yarde, Instrument Maker
“Before this system, the bottleneck was always
manual intervention.
Now the machine runs predictably,
which lets the rest of the workshop stay in motion.”
“Accuracy stopped being something we had to
constantly check.
Once the job is set up,
the result is consistent from the first cut to the last.”
“The biggest gain wasn’t just faster cutting,
it was mental load.
I no longer have to
plan my day around standing next to the machine.”
“Tool handling and probing used to
interrupt flow constantly.
With multiple tools prepared in advance,
the process feels structured instead of reactive.”
TECHNICAL
SPECIFICATIONS
Engineered for precision, repeatability, and long-term stability
model
8
16
Dimensions And Motors
X axis
Y axis
Z axis
Table Work Area*
650mm (25.6 inches) 400W closed loop Servo Motors
1220mm (48 inches) 400W closed loop Servo Motors
200mm (7.87") 400W closed loop Servo Motors
The machine cutter centre to cutter travel is 650mm x 1220mm within this Table
1250mm (49.2 inches) 400W closed loop Servo Motors
1220mm (48 inches) 400W closed loop Servo Motors (Two motors)
200mm (7.87") 400W closed loop Servo Motors
The machine cutter centre to cutter travel is 1250mm x 1220mm within this Table
*Table work area is not the same as the machine travel.
this is the Tslot table size on the machine.
Spindle systems made in Italy
2.2 kW HSK40 QTC Spindle HIGH TORQUE
9 kW ISO30 ATC Spindle (380V)
Quick change spindle system - 2.2kW Spindle with HSK40 ER32. Tool change is carried out with a torqued allen key wrench. The advantage is tool changes without the cost and complexity of full robotic automatic tool change. Max cutter size 20mm shank. Up to 24.000 rpm and 3.5Nm of Torque.
3.8kW 24,000 RPM spindle system with fully automatic air drive pick and place ATC automatic tool change. NOTE this spec requires a tool magazine to manage the tools for the automate changing. ER32 ISO30 tooling – Max cutter size 20mm shank.
MOTION SYSTEM
Full Ballscrew system T7 GRADE
One 20mm Ballscrew on X Axis
One 20mm Ballscrew on Y Axis
One 16mm Ballscrew on Z Axis
One 20mm Ballscrew on X Axis
Two 20mm Ballscrew on Y Axis
One 16mm Ballscrew on Z Axis
Precision Linear Rails
20mm size profiled linear HIWIN rails with 4 carriages per axis
TECHNICAL DATA
Machine base
All steel frame - 10mm steel laser cut - 80 x 40 steel box section with 6mm to 8mm wall thickness.
Precision machined on aerospace machining center before rail and ballscrew end condition assembly.
Floor space requirement
1050mm x 1850mm
1850mm x 1850mm
Floor space requirement with Safety Enclosure
1350 x 2250mm
2250 x 2250mm with safety cover
Weight
600kg*
800kg*
*depends on extra and configuration
Power
230v 1phase - main machine will run off a 13A single phase supply.
Vacuum pump supply will be separate if applied to the machine.
Feed rate
Rapid Feed Rate
10,000mm/min - 15,000mm/min (depends on model )
We perform a geometric accuracy test to each machine we produce.
All of our measurements are made with Mitutoyo calibrated instruments.
Technical data
Gantry bridge
160x80mm heavy duty Alloy Bridge. For light and strong construction. High accelerations and speeds realized and high strength for maximum rigidity.
Gantry Supports
FEA designed precision machined construction - the Gantry supports are machined form solid 6082T6 Alloy on a machining centre and have been optimized for max strength transfer into the bridge from the frame.
Gantry Clearance
As standard 170mm clearance and repositionable Z height allows for extension to 200mm clearance.
The Z axis has 200mm stroke - so spindle is moved fully up and out of the clearance zone.
let’s talk about
money
This system is not for everyone.
If your workshop cannot generate at least €500 in monthly profit,
this machine is not a smart purchase.
And that’s okay. It’s built for serious builders.
But if it can, let’s do the math.
A €50,000 system paid back at €500 per month takes 100 months.
That’s the slowest possible scenario, assuming nothing changes.
In reality, nothing stays the same.
By removing manual tool changes, reducing setup time,
and allowing the machine to run while you work elsewhere,
most instrument makers increase effective output by 2–5×
Let’s stay conservative.
If your workshop currently generates €2,000 per month,
and automation doubles that to €4,000, the system pays for itself
in just over two years.
At 3× efficiency, the payback period shortens significantly.
At 5×, the machine stops being a cost and becomes leverage.
And that doesn’t even account for the hidden gains:
Less fatigue.
Fewer mistakes.
More consistency.
More time spent on craftsmanship instead of babysitting processes.
This system is not for everyone.
But if your bottleneck is time, people, consistency, or repeatability,
this machine removes friction from all of them.
For workshops ready to move forward,
we currently offer a 10% configuration incentive for instrument makers.
The real question isn’t what the machine costs.
It’s what your current workflow is already costing you every month.
SAVE TIME AND MONEY
TIME IS THE REAL COST
LABOR WITHOUT PAYROLL
CONSISTENCY THAT SCALES
Manual setups, tool changes,
and supervision kill throughput.
Typical small shop reality
-
Operator hourly cost: $25–$40/hour
-
Setup + supervision per job: 2–4 hours
-
Jobs per day: 2–3
With automated, unattended runs
-
Setup once, run unattended
-
2–4 hours/day freed per machine
-
That’s $50–$160/day saved in labor time
-
$12,000–$38,000/year per machine
If the machine is cutting, you’re not waiting and not paying for idle time.
Skilled labor is expensive and unreliable.
Automation is not.
Typical scenario
-
One skilled operator costs $50,000–$70,000/year
-
Training takes months
-
Turnover resets productivity
With standardized CNC automation
-
One operator oversees multiple machines
-
Repetitive tasks removed from payroll
-
Small teams operate like larger shops
Result
-
Same output with 30–50% less labor dependency
-
Growth without hiring
-
Predictable production capacity
Inconsistent output is hidden cost.
Without repeatability
-
Scrap rate: 3–10%
-
Rework eats margins
-
Delivery times drift
With industrial-grade repeatability
-
Identical parts every run
-
Scrap reduced to <1%
-
Batch-after-batch consistency
What that means
-
Less wasted material
-
Fewer delays
-
Predictable delivery dates
-
Scaling without chaos
OUR VIDEOS
We've elevated small format CNC rigidity to unparalleled heights.
Leveraging Finite Element Analysis, every component is meticulously designed for maximum stability.
Dive into our manufacturing process to see our commitment in action.
LATEST NEWS
OUR DISTRIBUTORS
Our Distributors are your fastest entrance points to learn more about our solutions.
Physical presence in the UK, Ireland, and Australia. We have online assistance globally.
GET IN TOUCH
Ready to push the boundaries of your production capabilities?
Contact our sales team for a personalized consultation and discover how our CNC machines can elevate your business to new heights.
Tähesaju tee 9
13917 Tallinn
Estonia
